(American Standards Testing & Materials)

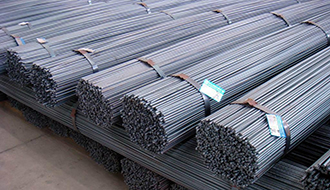

With unique characteristics ASTM A 706 is a Steel Bar being used in numerous high rise structures in the country. The greater amount of Elongation than ASTM 615-A and Wieldable option give it a competitive advantage over normal Steel Bars.
DEFORMED STEEL BARS – GRADE 60 3/8" – 1.5" OR 9mm – 40mm
DEFORMED STEEL BARS – GRADE 80 3/8" – 1.5" OR 9mm – 40mm
ASTM-A-706
A706 Mechanical Requirements
Grade 60 | Grade 80 | ||
Yield, PSI | 60,000-78,000 | 80,000-98,000 | |
Tensile, PSI (min) | 80,000 | 100,000 | |
Elongation % (min) | |||
Bar size #3,4,5,6 | 14 | 12 | |
7,8,9,10,11 | 12 | 12 | |
14,18 | 10 | 10 | |
*Tensile strength shall not be less than 1.25 times the actual yield strength | |||
A706 Bend Test Requirements
Bar Designation# | Pin Dia. Grade 60 | Pin Dia. Grade 80 |
3,4,5 | 3d | 3-1/2d |
6,7,8 | 4d | 5d |
9,10,11 | 6d | 7d |
14,18 | 8d | 9d |
